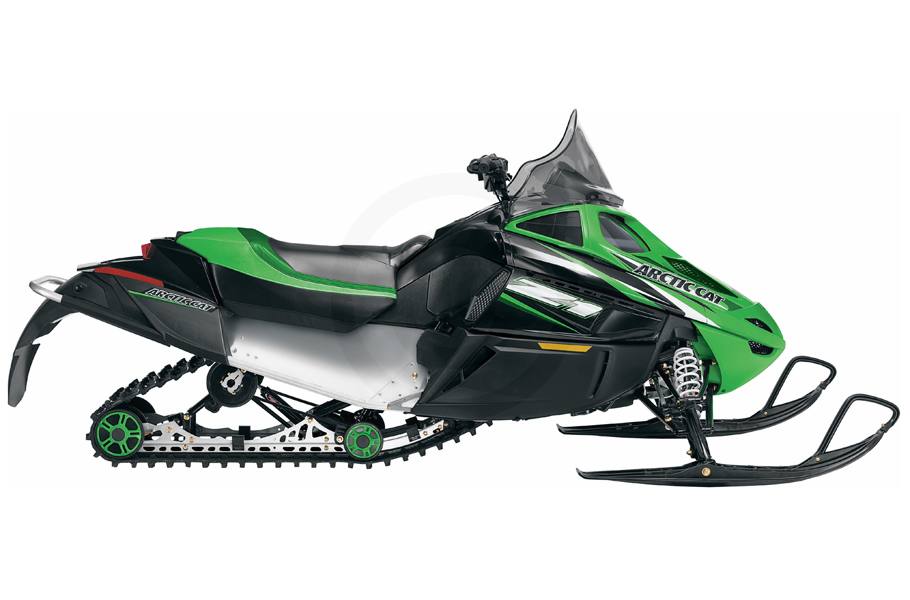

2009 Arctic Cat Z1

Now until September 30, 2010
$1,550.00 Off MSRP
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    SPECIFICATIONS
    • ENGINE TYPE, DISPLACEMENT COOLING AND CYLINDERS: Suzuki 4-stroke, 1056cc, liquid, twin
    • BORE x STROKE: 98 mm x 70 mm
    • LUBRICATION: dry sump
    • IGNITION: full transistor/coil at plug
    • CARBURETION: 48 mm dual throttle body EFI
    • EXHAUST: stainless steel
    • DRIVE: Arctic (rpm sensing)
    • DRIVEN CLUTCH: Arctic (roller cam) ACT drive system
    • SKI STANCE: 43 in.
    • SKI MATERIAL: UHMW plastic saddleless
    • FRONT SUSPENSION: AWS VII double-wishbone A-arms with Ryde FX shocks and sway bar
    • FRONT TRAVEL: 9.5 in.
    • REAR SUSPENSION: slide-action frame with coupling blocks, adjustable torsion springs and Ryde FX rear armshock
    • REAR TRAVEL: 13.5 in.
    • TRACK WIDTH x LENGTH x LUG: 15 in. x 128 in. x 1.0 in.
    • BRAKES: hydraulic disc
    • FUEL CAPACITY: 10.8 gal.
    • LENGTH x WIDTH: 118 in. x 47.25 in.
    • HEADLIGHT: dual halogen (4-bulb)
    • STANDARD EQUIPMENT: digital/analog tachometer, digital/analog speedometer, dual stage trip odometer, electric gas gauge, low oil light, low battery light, coolant overheat light, clock, electric start, reverse, high/low hand warmer, high/low thumb warmer, accessory outlet, mid-height windshield, infinite rider positioning
    • OPTIONAL EQUIPMENT: mirrors, high windshield, tether switch, 2-passenger seat, hitch, heated seat, engine heater
    • AVAILABLE COLORS: Green

    Specifications

    Engine
    Engine Type Suzuki 4-stroke
    Displacement 1056 cc
    Bore x Stroke 98 mm x 70 mm
    Cylinders Twin
    Engine Cooling Liquid
    Carburetion 48 mm dual throttle body EFI
    Ignition Full transistor/coil at plug
    Exhaust Stainless steel
    Drivetrain
    Brake Type Hydraulic disc
    Drive Clutch Arctic (rpm sensing)
    Driven Clutch Arctic (roller cam) ACT drive system
    Suspension
    Front Suspension AWS VII double-wishbone A-arms with Ryde FX shocks and sway bar/IFP shocks and sway bar
    Front Travel 9.5 in.
    Rear Suspension Slide-action frame with coupling blocks, adjustable torsion springs and Ryde FX rear armshock/IFP rear arm shock
    Rear Travel 13.5 in.
    Ski Type UHMW plastic saddleless
    Ski Stance 43 in.
    Track Type Rubber/fiber reinforced
    Track Dimensions 15" x 128" x 1.0"
    General
    Speedometer Digital/analog
    Tachometer Digital/analog
    Odometer Dual stage trip
    Headlight Dual halogen (4-bulb)
    Fuel Capacity 10.8 gal.
    Windshield Mid-height; Optional: High windshield
    Color Green
    Options
    Electric Start Standard
    Hand & Thumb Warmers High/low hand warmer; High/low thumb warmer
    Reverse Standard
    Mirrors Optional

    Compare Models

    		 Print








    Year 2009
    Manufacturer Arctic Cat
    Model Z1
    Style Performance
    MSRP* $9,549.00
    Drivetrain
    Brake Type Hydraulic disc
    Drive Clutch Arctic (rpm sensing)
    Driven Clutch Arctic (roller cam) ACT drive system
    Engine
    Engine Type Suzuki 4-stroke
    Displacement 1056 cc
    Bore x Stroke 98 mm x 70 mm
    Cylinders Twin
    Engine Cooling Liquid
    Carburetion 48 mm dual throttle body EFI
    Ignition Full transistor/coil at plug
    Exhaust Stainless steel
    Alternator
    General
    Speedometer Digital/analog
    Tachometer Digital/analog
    Odometer Dual stage trip
    Headlight Dual halogen (4-bulb)
    Fuel Capacity 10.8 gal.
    Dry Weight
    Windshield Mid-height; Optional: High windshield
    Color Green
    Warranty
    Options
    Electric Start Standard
    Hand & Thumb Warmers High/low hand warmer; High/low thumb warmer
    Reverse Standard
    Mirrors Optional
    Suspension
    Front Suspension AWS VII double-wishbone A-arms with Ryde FX shocks and sway bar/IFP shocks and sway bar
    Front Travel 9.5 in.
    Rear Suspension Slide-action frame with coupling blocks, adjustable torsion springs and Ryde FX rear armshock/IFP rear arm shock
    Rear Travel 13.5 in.
    Ski Type UHMW plastic saddleless
    Ski Stance 43 in.
    Track Type Rubber/fiber reinforced
    Track Dimensions 15" x 128" x 1.0"
